BBX mini 2 - Barrel Bore eXplorer
Lightweight and portable device for inner surface barrel inspection
Overview
Diameter range
Suitable for barrels
120–155 mm, smooth or
rifled.
Position measurement
Frontal laser positioning up to
8 m.
High-resolution imaging
Recording of the inner surface with a
high-resolution camera
and illumination.
3D profilometry
Profilometry in the visual contact area (creation of a
3D running profile).
Optional rugged housing
Dust-protected and water-splash resistant (outdoor use
with reduced precision).
Specs
Technical specifications
| Dimensions | ∅110 × 500 mm |
| Weight | 6 690 g |
| Supply voltage | 24 V DC |
| Consumption approx. | 50 W |
| Operating humidity | 0 - 80 % |
In the box
- Main unit - BBX mini 2
- Spacing rings for 120 mm, 155 mm diameters or custom size
- Guiding rod - 6 segments (each 1,5 meters)
- PowerBox power supply (input 230 V AC / output 24 V DC, connection with PC/NB)
- Main connection cable, ethernet cable and power adapter
- CD with analysis software with built-in tools for generating inspection reports
- Transport case and suitable notebook
- User manual (EN/GE/CZ)
Software

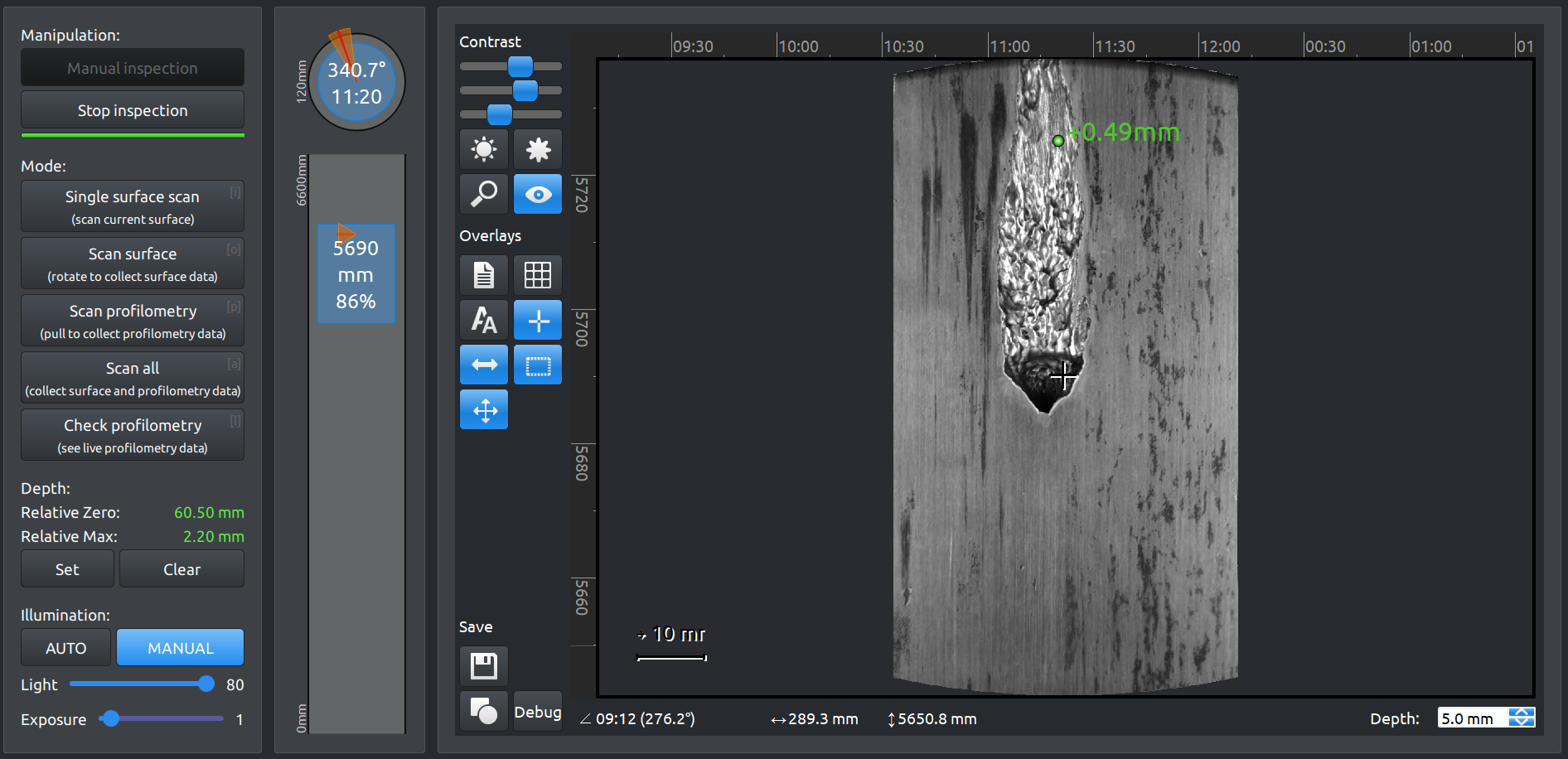

Live inspection interface showing damage measurement.

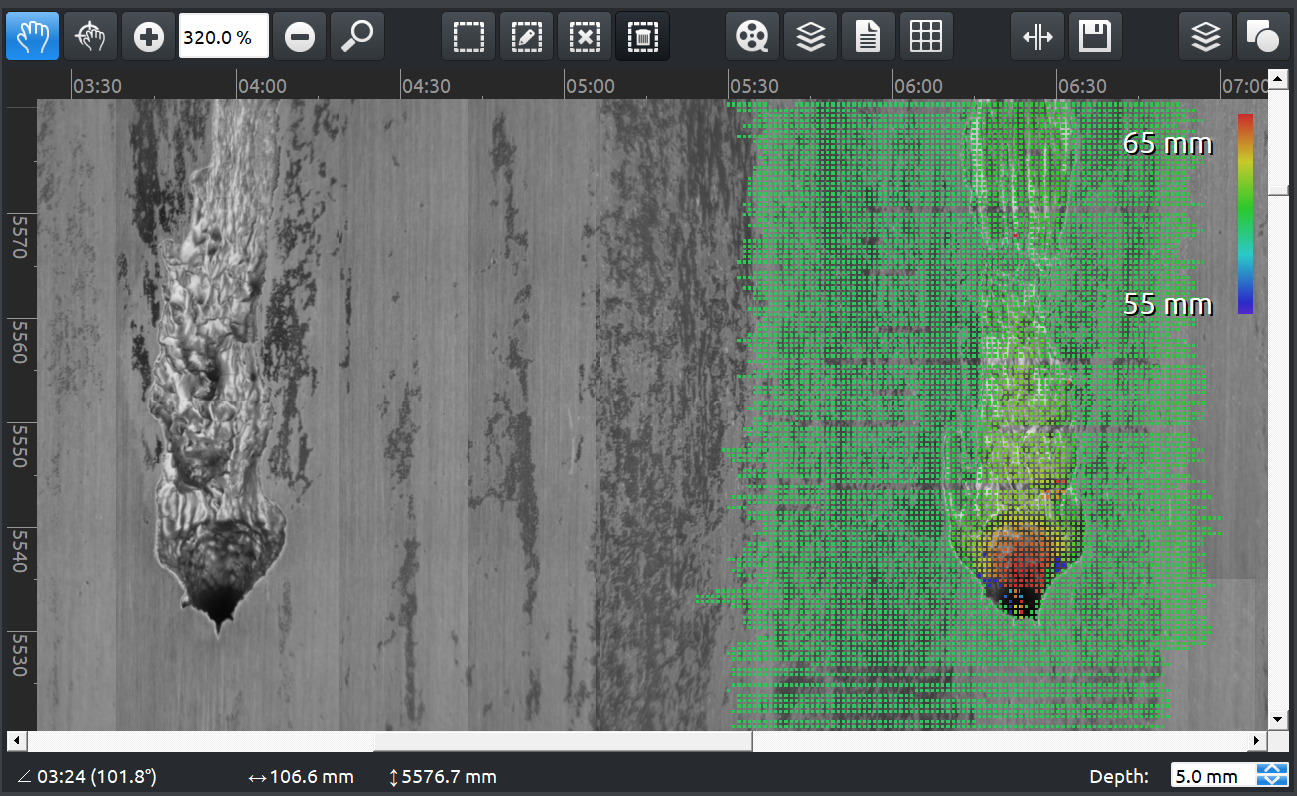

Live inspection interface showing profilometry overlay.

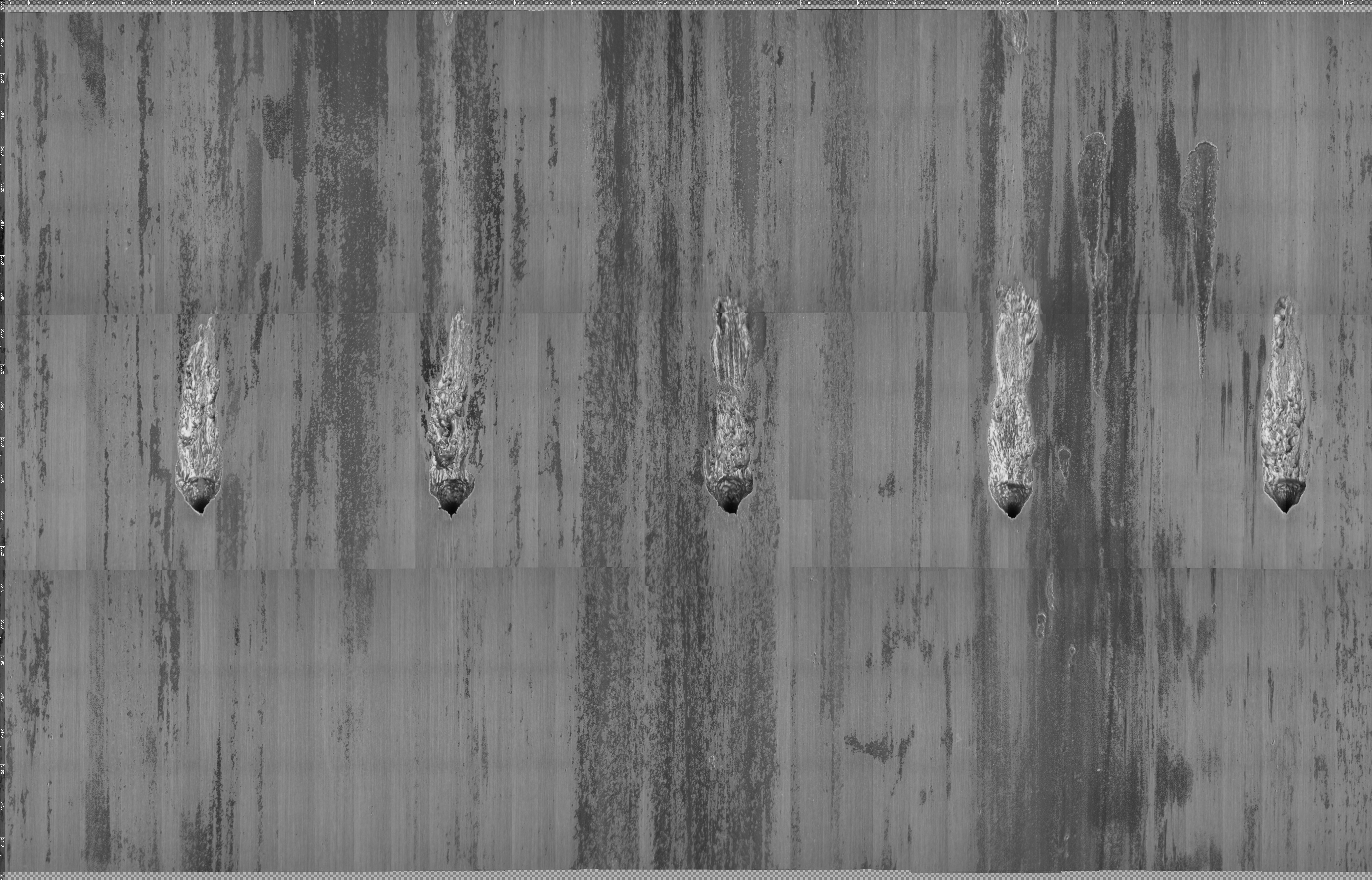

Automated stitching of the whole barrel surface.

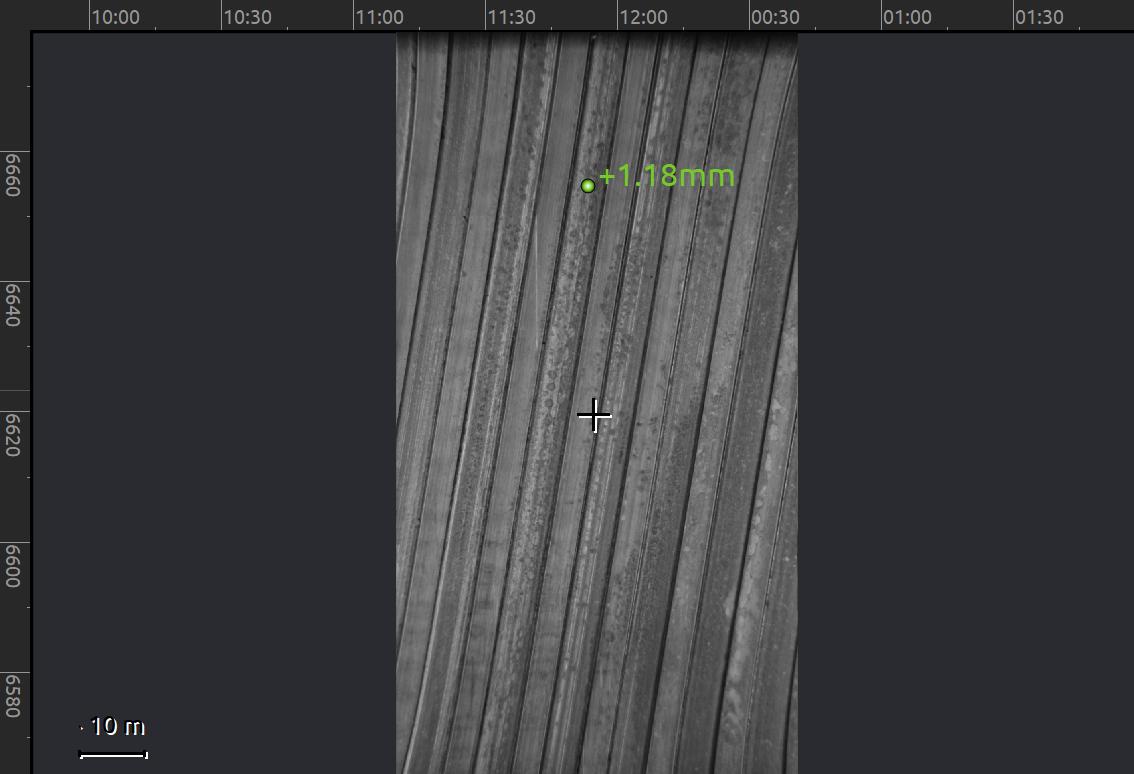

Grooved surface of the barrel with live depth measurement.
